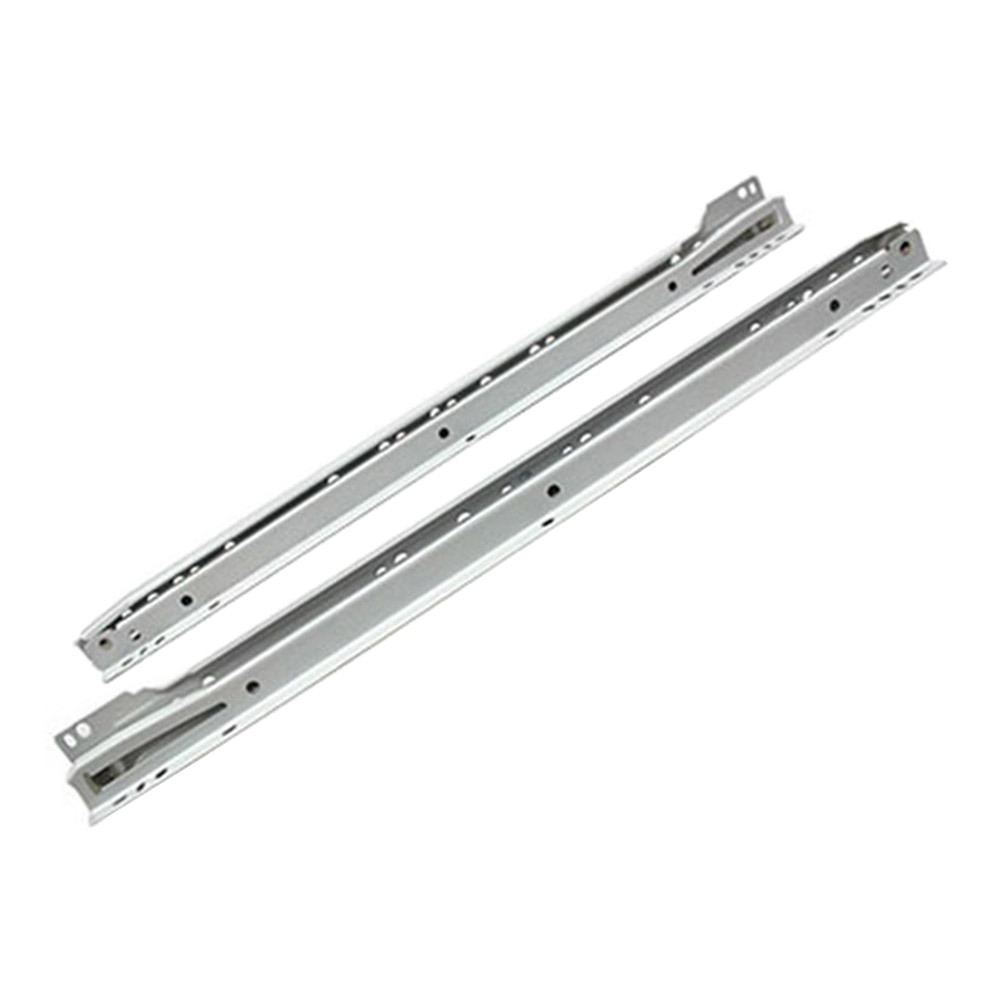

This drawer slide is a great cheap general purpose slide for internal use on kitchens and workshops.

NOTE: Price is for a PAIR of drawer slides.

Features:

  • Load capacity: 30 kg/pair
  • Lengths: 250mm - 550mm
  • Material: steel
  • Finish: zinc plated

Installation

This top quality product has been tested in the Australian environment. Please note a few things to consider during installation.

  • When marking hole placements you MUST NOT drill through the slide holes during installation. Doing this will create metal filings which lodge in the tracks resulting in rough running and ultimately, failure of the slides.

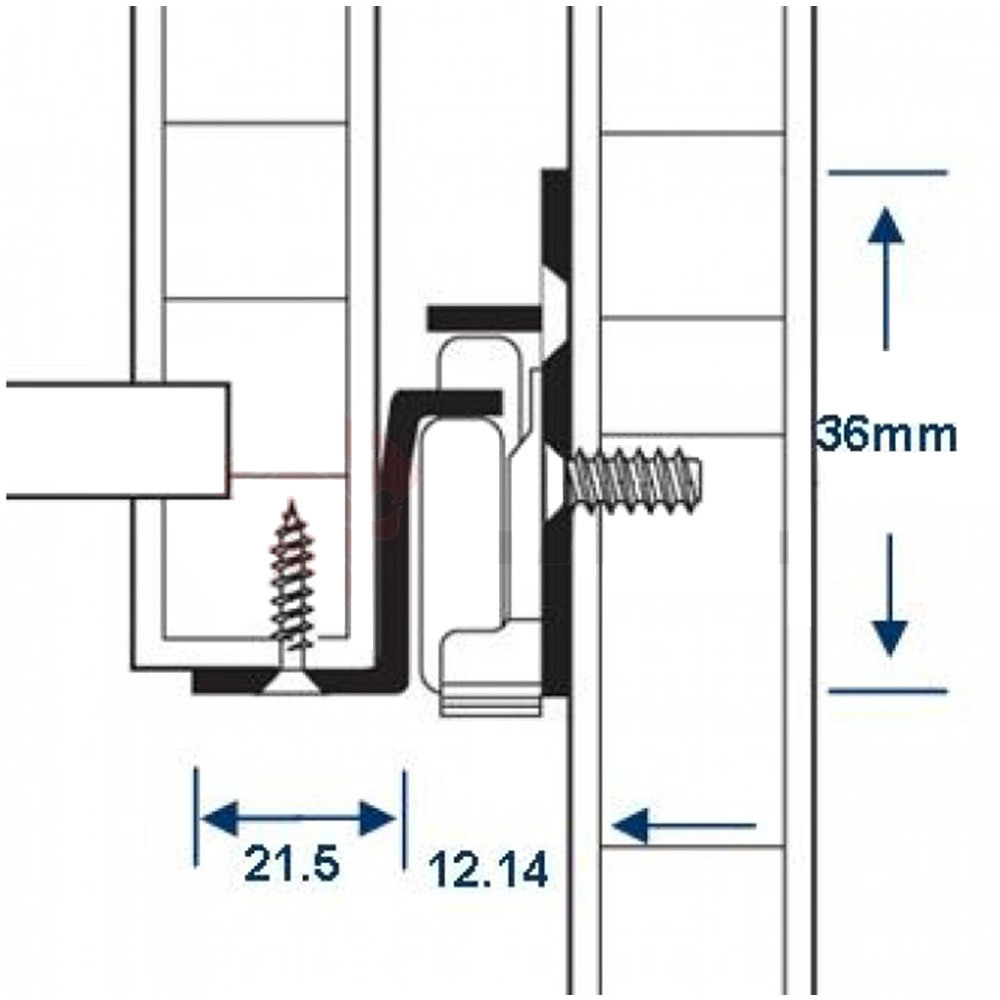

  • Depending on substrate, stainless steel 'flat head' hex screws with NY-lock nuts or stainless steel rivets are recommended.
  • There must be no rubbing of the fixing against the moving slides. This will cause failure of the slide.

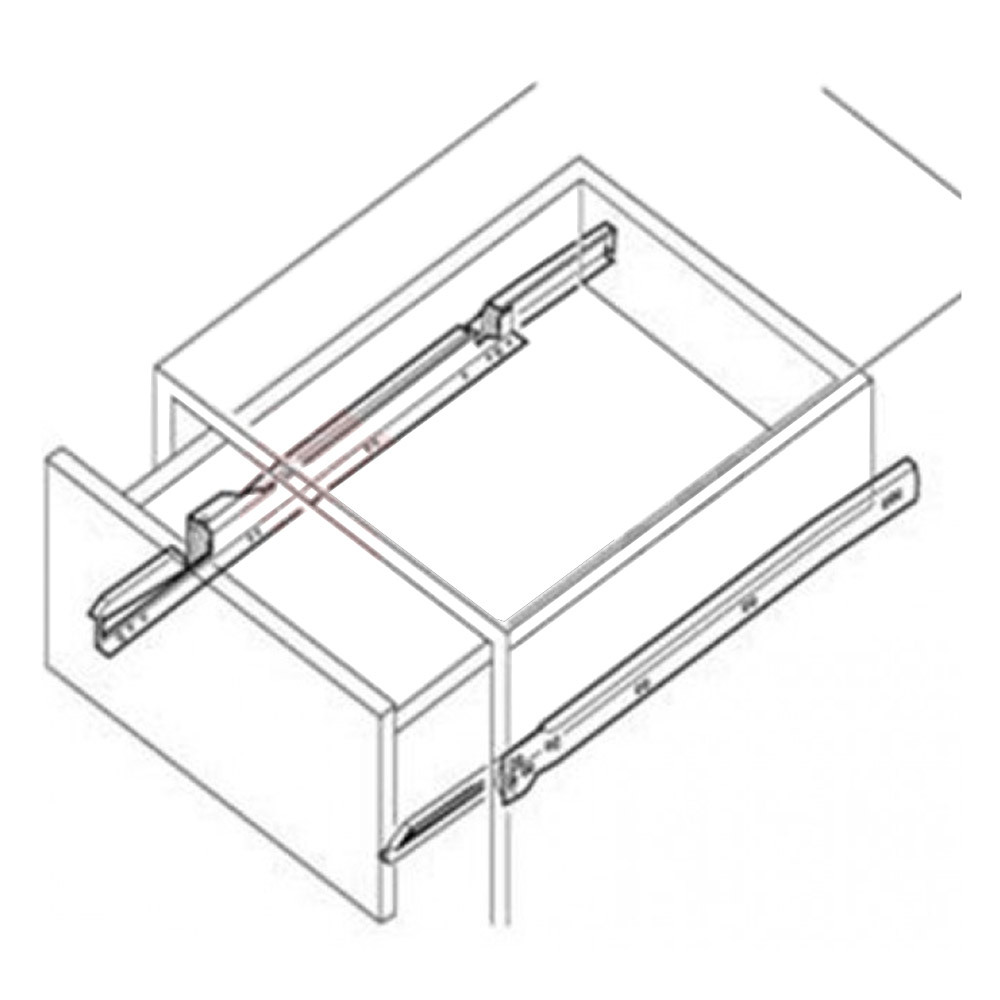

  • Our slides are designed to be mounted horizontally and paired side by side. Mounting them vertically one above the other or in a flat position will void the warranty.
  • Any questions please contact our office.
SKU DS423.37.725RC
Barcode # 9353466003551
Brand RedCat
Shipping Weight 0.3030kg
Shipping Width 0.030m
Shipping Height 0.030m
Shipping Length 0.300m
Shipping Cubic 0.000300000m3
